Dahua telecamera con pannello solare - LTE 4G

Dahua telecamera con pannello solare - LTE 4G PFM364-kit

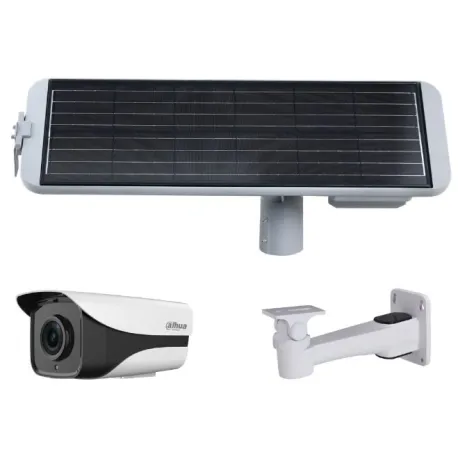

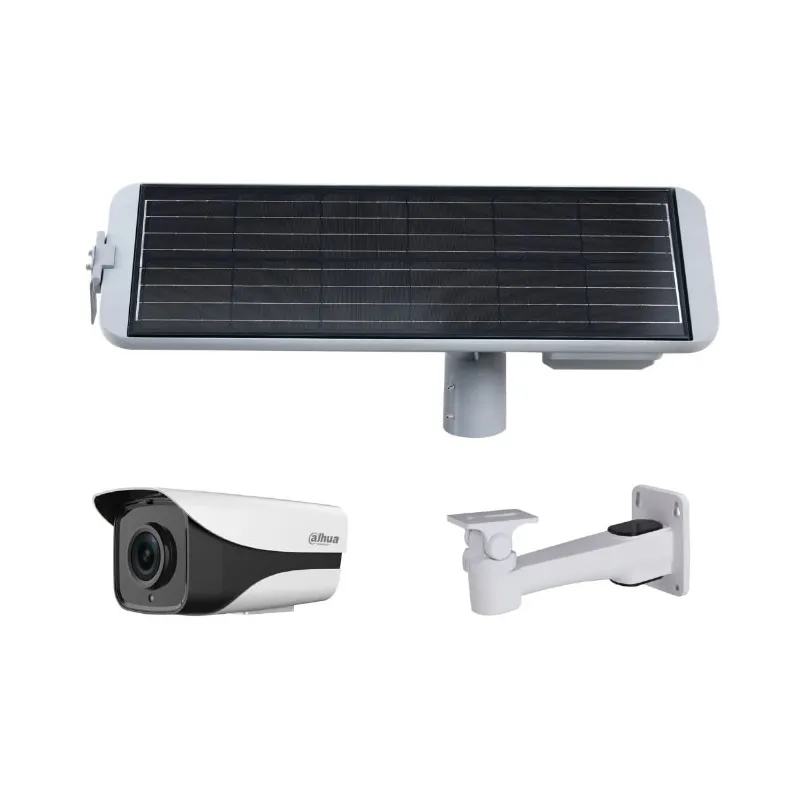

Dahua telecamera con pannello solare e router LTE 4G integrato.

kit Dahua con telecamera , router 4G e pannello solare.PFM364-KIT Integrated Solar Monitoring System / 60W / 576Wh (12.8V/45Ah)

Dahua telecamera con pannello solare - Kit alimentazione solare da 60W con telecamera 4G inclusa.

Descrizione generale del kit Dahua telecamera con pannello solare da 60 W

System Overview

Integrated solar monitoring system, all in one desion, using 4G to transfer monitoring data and solar to power, which is easy/quick to install and can save wiring to the greatest extent, includes three parts: 4G network camera, integrated solar power system and camera's mounting bracket, which is more convenient for sale, order and transportation.

The integrated solar power system, integrating solar panels, lithium batteries, maximum power point tracking(MPPT) charging controller and mounting brackets, provides stable power supply for the front-end data acquisition system —4G network camera through high conversion charging device.

It is compact, portable, easy to install, disassemble and maintain compared with conventional system.

The 4G supported IR bullet camera delivers 2MP resolution with a3.6mm or 6mm fixed lens.

The camera can be connected to mobileinternet as long as you have a SIM card, provides an excellent choice fora variety of small to mid-size applications such as off-grid system, farms,forest,border,etc.
Wall mount bracket of camera, support multi-angle flexible adjustment.

Integrated Aluminum die casting casing Compact structure integrated with solar panel, lithium battery pack and charging controller to improve the appearance, installation, and maintenance of the System.
Monocrystalline solar panelAdopts monocrystalline solar panel to greatly improve optical absorbance efficiency and power generation performance with dusky light.
Lithium batteryIron phosphate lithium battery has smaller size and longer cycle life compared with conventional lithium battery.

Remote monitoring with APP With Dahua cameras, it supports real-time remote monitoring of the system operation status and alarm prompts of battery with APP.

Maximum Power Point Tracking charging controller (MPPT)MPPT controller helps significantly improve the energy utilization efficiency of the System, and raise the charging efficiency by 10%–30% compared with conventional PWM controller.
RS-485 portRS-485 port and standard Modbus protocol, meeting communication requirements in various scenarios.

Electronic protectionComprehensive electronic protection: Current limiting, short circuit, and reverse current protection of solar panel; reverse connection, overvoltage, over-discharge, and over-temperature protection of lithium battery; overload and short circuit protection of load.

4GThe camera can be connected to Mobile Internet as long as you have aSIM card, then you can place it anywhere and no need to worry aboutthe wiring hassles.
Intelligent Video analysis (IVS)Dahua camera is equipped with a built-in intelligent analytic algorithmbased on video, which can realize intelligent functions like Tripwireand Intrusion, to quickly and accurately respond to monitoring eventsin specific area, It can enhance monitoring efficiency.
In addition, thecamera supports intelligent tamper detection, which is to generatewarning message via detecting dramatic scene change and to guaranteeeffective video surveillance.
Smart Codec (H.265+ & H.264+)Smart Codec is the optimized implementation of standard videocompression (H.265 & H.264) that uses a scene-adaptive encodingstrategy, dynamic GOP, dynamic ROI, flexible multi-frame referencestructure and intelligent noise reduction to deliver high-quality videowithout straining the network. Smart Codec technology reduces bit rateand storage requirements by up to 70% when compared to the standardvideo compression

Environmental
Dahua cameras operate in extreme temperature environments, rated foruse in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%humidity.

Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for themost unstable conditions for outdoor applications.
Its 2KV lightningrating provides effective protection for both the camera and its structureagainst lightning.
Subjected and certified to rigorous dust and immersiontests (IP67), the camera is the choice for installation in even the mostunforgiving environments

Network
EthernetRJ-45 (10/100Base-T)
Mobile Communication 4G

Operating band
Model 1:
TDD-LTE:Band38/39/40/41
FDD-LTE:Band1/3/5/8
WCDMA:Band1/8
TD-SCDMA:Band34/39EVDO/CDMA1X:BC0
GSM:Band3/8

Model 2:
FDD-LTE:Band1/2/3/4/5/7/8/20
UMTS:Band1/2/5/8
GSM:850/900/1800/1900

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability
ONVIF Profile S&G, APIStreaming MethodUnicast / MulticastMax.

User Access10 Users /20 Users

Edge Storage
NAS
Local PC for instant recording
Mirco SD card 256G

Web Viewer
IE, Chrome, Firefox, Safari

Management Software
Smart PSS, DSS, DMSSSmart PhoneIOS, Android
Features:

Solar Power System PFM364L-D1:
· Integrated die casting casing
· Aluminum alloy frame
· Monocrystalline solar panel
· Lithium battery pack
· Remote monitoring with APP
· Maximum Power Point Tracking(MPPT) charging  controller
· RS485 communication function
· Electronic protection

4G Network Camera IPC-HFW4230MP-4G-AS-I2:
· 1/2.9” 2Megapixel progressive CMOS
· H.265&H.264 dual-stream encoding
· 25/30fps@2M(1920×1080)
· Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
· Micro SD card slot, up to 256GB
· 3.6mm fixed lens
· Max. IR LEDs Length 40m
· 4G supported
· IP67

Staffa PFB121W inclusa
