Sistema di videoconferenza all in one Avaya CU360

Sistema di videoconferenza all in one Avaya CU360

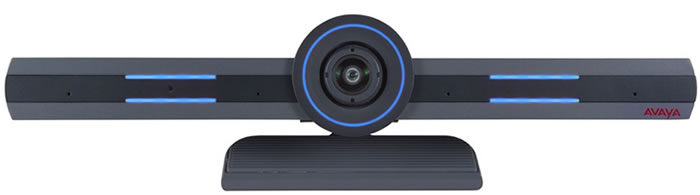

Sistema di videoconferenza Avaya Collaboration Unit CU360 All in One.

Avaya CU360, è un sistema di videoconferenza all in one, progettato anche  per uso in cloud, su varie piattaforme, specie su Avaya Equinox Meetings online.

Descrizione generale del sistema di videoconferenza Avaya CU360 collaboration unit.

Il sistema di videoconferenza Avaya Cu360 è ideale per piccole  e medie sale riunioni (huddle room) in cui c'è l'esigenza di  instaurare audio videoconferenza su IP punto/punto e/o in cloud multi sede.

Il sistema di videoconferenza Avaya Collaboration unit CU360, supporta sia il protocollo SIP che H.323, è quindi interoperabile con diversi sistemi anche di terze parti, benchè sia pienamente compatibile con la soluzione Avaya Equinox Meetngs online, dove fornisce il massimo delle prestazioni operative.

Supporta interazione cloud con office 365, google Apps, Dropbox, Salesforce e altre applicazioni Android.

Caratteristiche tecniche del sistema di videoconferenza Avaya Cu360:

• Protocolli: H.323, SIP (RFC 3261)
• Bit rate: H.323, SIP: up to 4 Mbps
• MCU compatibility: H.243, H.231XMPP
• Presence support
• 2 simultaneous 1080p channels: camera + content
• Video ProtocolsH.264, H.264 High Profile
• Dual: H.239 (H.323); BFCP (SIP)
• Microphone array
• Audio Inputs:Bluetooth
• Audio Outputs:1 x HDMI Bluetooth
• Content Sharing/Web Collaboration Features Wireless presentation up to 1080p15fps
• Content Sharing/Web Collaboration Protocols Dual video: H.239 (H.323); BFCP (SIP)
• Avaya Equinox native web collaboration
• 1 x USB-C,  1 x USB3
• Network Features: IPv4 and IPv6 simultaneous support
• Auto Gatekeeper discovery
• QoS support: IP Precedence, IP Type of Service (ToS), Differentiated Services (diffserv)Avaya NetSense bandwidth adaptation for high quality over unmanaged networks
• IP adaptive packet management
• Flow control
• Packet Loss based down-speeding
• Packet Loss recovery policies
• Network Protocols: DHCP, DNS, HTTP, HTTPS, RTP/RTCP, SNTP, STUN, TCP/IP, TELNET, TFTP , 802.1q and 802.1p
• Network Interfaces 10/100/1000 Base-T full-duplex (RJ-45)
• Wi-Fi (802.11a/b/g/n, 802.11ac, Hotspot)
• Zigbee automation

Altre caratteristiche tecniche del sistema di videoconferenza Avaya IX - CU360:

• Firewall Traversal
• Auto NAT discovery HTTP and STUN
• H.460.18, H.460.19“Keep Alive” packet time configurable
• 24 language on-screen user interface
• Infrared remote control
• API for endpoint control
• Avaya Control application for Apple iPad and iPhone
• Microsoft Exchange calendar integration
• Directory Service & Address Book:LDAP Client (H.350), Receive global address book from LDAP Server including Avaya Equinox
• Embedded encryption
• H.323 security per H.235v3/Annex D
• SIP security per SRTP and TLS 1.2, enciphering up to AES-256
• SIP “Digest” authentication (MD5)
• RTP media enciphering with AES-256
• Public-Key including Diffie-Hellman (2048 bits), RSA (up to 4096 bits)
• Cryptographic hash (up to SHA-512)
• Web access via HTTPS
• Selective enable / disable of IP features
• White list support
• Avaya Enhanced Access Security Gateway (EASG) support
• Web Management Configuration, call, diagnostics and management functions are accessible with Internet Explorer 8.0+, Firefox 3.6+, Safari 5.0+, Chrome 11.0+, Opera 11+
• Meeting Recording: Recording on USB key/disk
• Feature supported in call and out of a call
• Supported disks with file system FAT32, EXT2, EXT3, EXT4.
• Recorded file resolution 720p25 (rescaled to 720p when exceeding such resolution)
• Control API commands available to transfer the recorded file to a remote FTP server
• Recording not supported when sharing data from the device using Screen Link
• Power Supply100–240 VAC, 50–60Hz, 2.5A max.
• Physical Characteristics: 28.0 cm x 5.5 cm x 6.5 cm
• Garanzia 12 mesi
