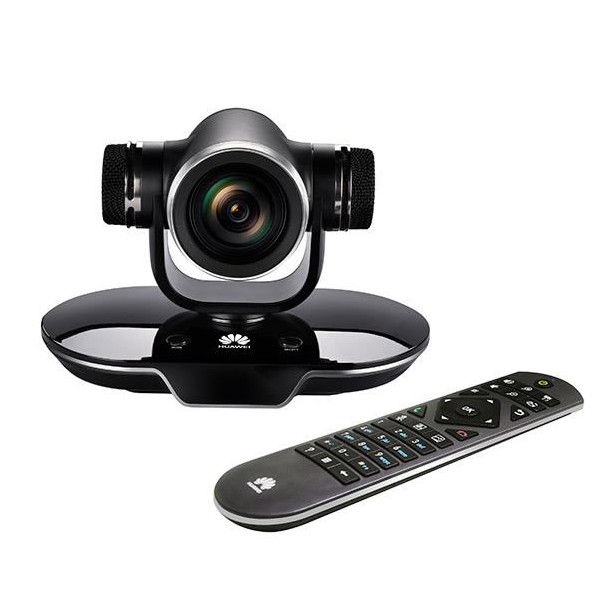

Huawei TE30 videoconferenza SIP H.323 720P all in one

Huawei TE30 sistema di videoconferenza HD All In One con wifi 720p

Videoconferenza Huawei TE30, semplice e performante, per una videcomunicazione efficace, anche in cloud.

Un sistema di videoconferenza come Huawei TE30, semplifica la gestione delle videoconferenza delle aziende e pubblica amministrazione, semplice da installare e da utilizzare.

Il microfono integrato permette di acquisire audio dei partecipanti fino a max 6 metri di distanza.

E' consigliata per piccoli gruppi di lavoro con max 6-8 partecipanti

Consigliata anche per videoconferenze multipunto (fino a 4 sedi).

Sfruttando la connettività Wi-Fi di huawei TE30 è possibile posizionarla in ambienti in cui non è disponibile la rete LAN con cavo.

Il sistema VME brevettato di Huawei TE30, permette il riconoscimento facciale e ne permette l'utilizzo in ambienti con scarsa illuminazione.

Suggeriamo, per coloro i quali devono gestire videoconferenza multipunto con latri endpoints/stndard (Lync, S4B, Teams, WebRTC, SIP, H323) di utilizzare il servizio Cloud EzMeeting

Ezmeeting può essere attivato in prova gratuita per 15 giorni.

Specifiche video Huawei TE30 videoconferenza HD all in one:

• All in one risoluzione 720p
• Zoom: 12x optical
• Number of preset positions: 30
• Maximum horizontal angle: 72° horizontal field of view
• Panning/Tilting angle: +/-30° tilt, +/- 100° pan
• Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)
• Far-end camera control
• Upside-down mounting with automatic flipping of picture

Specifiche tecniche audio TE30:

• Dual-channel AAC-LD Stereo
• HWA-LD Stereo: HUAWEI Audio Broadband Low Delay Stereo
• Acoustic Echo Cancellation (AEC)
• Acoustic Noise Suppression (ANS) 12 dB
• Automatic Gain Control (AGC) ±6 dB
• Voice Clear, Audio Enhancer
• Lip synchronization

Altre funzioni video Huawei TE30

• Intelligent Face Detection
• Picture in Picture, Picture outside Picture
• VME (Video Motion Enhancement)
• Video Intensifier - View Processing
• 720p (opzione 1080p)


Rete:

• Dual-stack IPv6 and IPv4
• IP Precedence, Diffserv
• Uniform resource identifier (URI) dialing
• Super Error Concealment (SEC), Intelligent Rate Control (IRC)
• Automatic Repeat-reQuest (ARQ), Forward Error Correction (FEC), PLC

Sicurezza:

• H.235 signaling and media stream encryption
• AES media stream encryption, dual-stream encryption
• TLS and SRTP for SIP signaling and media stream encryption
• Conference access password, conference control password
• Administrator password, SSH/HTTPS

Firewall Traversal: H.460.18, H.460.19 fir ewall traversal, Static NAT, SNP

Bandwidth

• IP: 64 Kbps to 4 Mbps

Interfacce

• Audio Inputs: 1×3.5 mm line-in jack, 1×HD-AI (stereo, connects to microphone array)
• Audio Outputs: 1×3.5 mm line-out jack, 1×HDMI
• Video Inputs: 1×VGA, 1×Built-in Camera

Interfacce di rete

• IP: 10/100 Base-T, 1×RJ45
• Wireless: Built-in Wi-Fi

Opzioni:

• VPM220 Microphone array or VPM220Wwireless Microphone, Wireless touch panel
• Function Models: 1080p @ 30 fps,Application Features

Lingue menù:

Simplified Chinese, Traditional Chinese, English, Japanese, Russian , French , Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian,
Czech, Turkish, Greek, Thai, Dutch, Malay, Indonesian

Funzioni speciali:

• Voice Dialing in English and Chinese
• Installation from a USB disk, Plug and play
• Integration with Microsoft Lync2010TM / Lync2013TM and OCS2007R2
• Hybrid with IMS network
• Wi-Fi
• Air content sharing
• Wireless MIC VPM220W access
• Upside-down mounting
• Rolling display mode of the speech draft
• Modifiable front background color, caption size and transparency
• 64 optional colors
• Editable caption and auto zone adjustment
• Caption rolling mode setting
• Site name display and position shift
• Text input through remote control
• P2P to multipoint
• Favorites in address book
• HD SiteCall
• Lock content sharing
• Web-based conference management
• Web-based image monitoring and cture snapshot
• 16:9 and 4:3 mixed display
• PIP: 1/16 picture size, optional position
• Split output: Bi-screen and tri-screen display
• LDAP/Network address book
• API for integration
• Digital Caption:
• Caption banner, body text and information bar

Dimensioni Huawei TE30:

• Codec dimensions (L×W×H): 235mm×167mm×157mm
• Package dimensions (L×W×H): 402mm×232mm×237mm
• Net weight: 2.1 kg
• Package Weight: 3.3 kg

Environmental Specification:

• Operating Temperature: 0°C to 40ºC
• Operating Humidity: 10% to 80%
• Non-Operating Temperature: -40º to -70ºC
• Non-Operating Humidity (Non-condensing): 0% to 95%
• Peripheral noise: < 46 dBA SPL
• Lowest luminance: 7 lux
• Recommended luminance: > 300 lux
• Approval and Compliance: CE, RoHS, WEEE, REACH, UL, FCC, CCC
