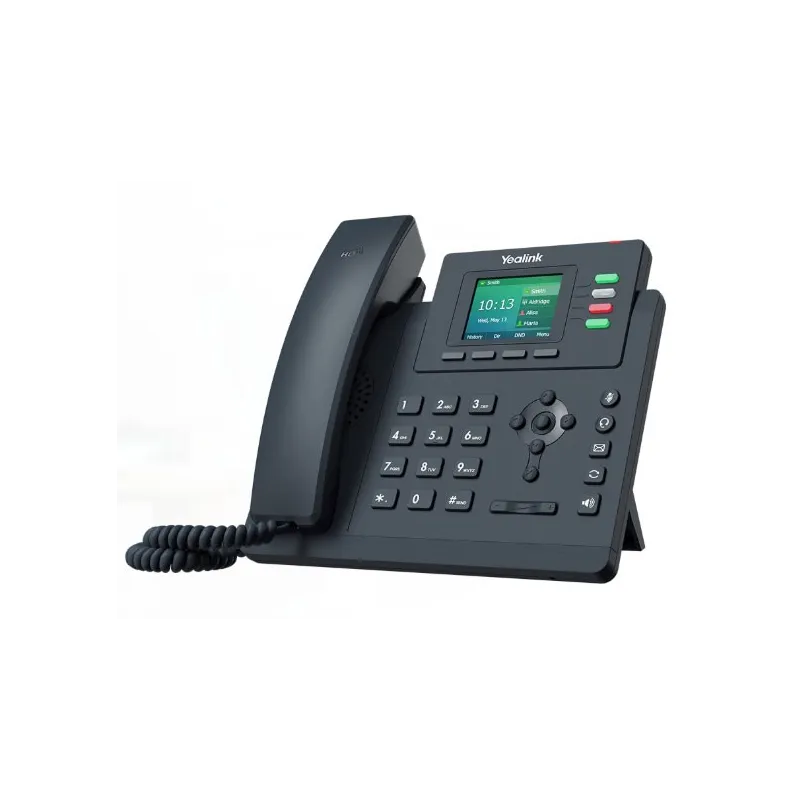

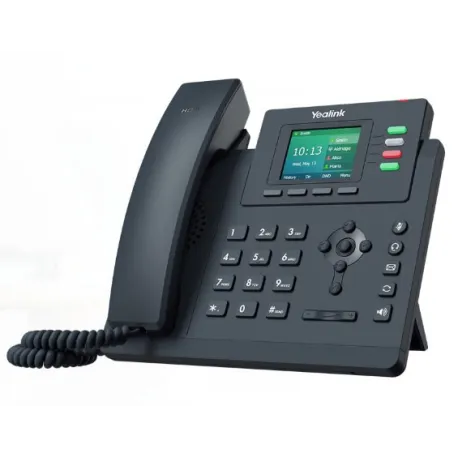

Yealink SIP-T34W WiFi

Yealink SIP-T34W WiFi

Yealink SIP-T34W telefono con WiFi integrato, porta USB, 2 porte gigabit LAN

Lo Yealink SIP-T34W è un telefono SIP con display a  colori, connessione via LAN cablata e WiFi dual band. Dotato di porta USB per utilizzare cuffie telefoniche via cavo o per collegare il dongle bluetooth, qualora si utilizzassero cuffie bluetooth Yealink.

il prodotto di punta della nuova serie di VoIP phones Yealink T3.

La nuova serie di telefoni IP Yealink T3 è progettata per uffici operativi, postazioni di call center, help desk e ambiente ufficio in genere.

Il terminale IP SIP Yelaink T34W è ideale per installazione in ambienti con o senza rete cablata, e con copertura WiFi da access point.

Descrizione generale telefoni VoIP SIP Yealink serie T3

Dotato di 12 tasti configurabili (4 pagine da 3 etichette LCD ciascuna, per un totale di 12 tasti programmabili con LED associato).

Ecco quindi che Yealink serie T3 si propone come soluzione di fascia media/bassa in termini di costi, sostituendo di fatto la serie Yealink T2.

Supporta cuffie wireless attraverso l'accessorio EHS35 (vedi cuffie WH62 WH63 WH67)

Il modello T34W è dotato di porta USB e quindi, supporta anche cuffie  con filo USB.

I modelli della serie Yealink T3:

• Yealink SIP-T34W - 2 porte Gigabit PoE - WiFi dual band
• Yealink SIP-T33G - 2 porte Gigabit PoE
• Yealink SIP-T33P - 2 porte 10/100 PoE
• Yealink SIP-T31G -2 porte Gigabit PoE
• Yealink SIP-T31P - 2 porte 10/100 PoE
• Yealink SIP-T31 - 2 porte 10/100 con alimentatore
• Yealink SIP-T30P - 2 porte 10/100 PoE
• Yealink SIP-T30 - 2 porte 10/100 con alimentatore

Yealink SIP-T34W - Caratteristiche tecniche

Phone Features

• 4 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call retur n, auto answer
• Local 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/impor t/delete
• Set date time manually or automatically
• Dial plan
• XML Browser, action URL/URI
• Integrated screenshots
• RTCP-XR, VQ-RTCPXR
• Enhanced DSS Key

Audio Features

• HD voice: HD handset, HD speak er
• Smart Noise Filtering
• Wideband codec: Opus, G.722
• Narrowband codec: G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Directory

• Loal phonebook up to 1000 entr ies
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded IP-PBX Features
• Busy Lamp Field (BLF), Br idged Line Apperance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recording

Display and Indicator

• 2.4” 320 x 240-pixel color display with backlight
• 16 bit depth color
• LED for call and message waiting indication
• Dual-color (red or g reen) illuminated LEDs for line status information
• Wallpaper
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Screensaver
• Power saving

Feature keys

• 4 line keys with LED
• 5 features keys: message, headset, redial, mute,hands-free speakerphone
• 6 navigation keys
• Volume control keys

Interface

• WiFi Dual band
• 1 USB (per audio bluetooth dongle)
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 2
• 1 x RJ9 (4P4C) handset por t
• 1 x RJ9 (4P4C) headset por t

Other Physical Features

• Color: Classic Grey
• Wall mountable
• External Yealink AC adapter AC 100~240V input and DC 5V/1,2A output
• Power consumption (PSU): 2-3W
• Power consumption (PoE): 3.5-5W
• Dimension (W*D*H*T): 212mm*186mm*146mm*42mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), La yer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS cer tificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE
