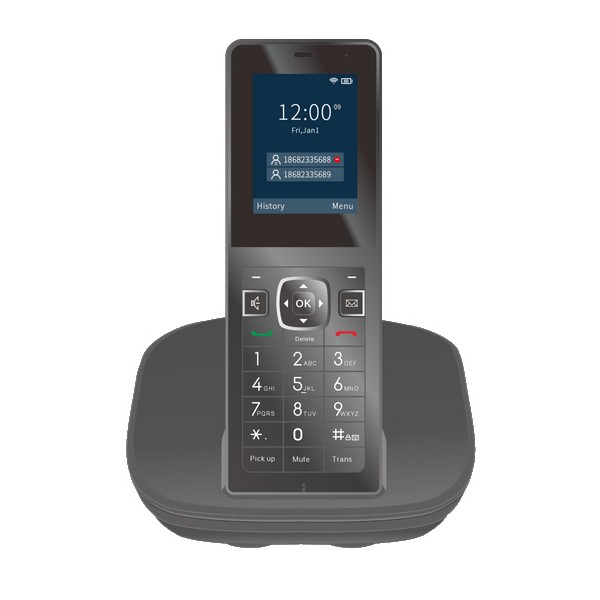

Terminale cordless LTE 4G SIP-H680L

Terminale cordless LTE 4G SIP-H680L

Il telefono cordless LTE LVswitch SIP-H680L, gestisce 2 sip account. E' dotato di display a colori.

Compatibile con qualunque centralino VoIP on premise o virtuale che fornisce SIP accounts (Yeastar, Openvox, 3cx, freepbx, freeswitch, etc).

Ideale per avere un terminale con SIP account sfruttando una SIM dati LTE.

Confezione

• Terminale SIP-H680L
• Alimentatore
• Base di ricarica
• Cavo tipo C
• 1 batteria agli ioni di litio
• Guida
• Slot per contenere SIM LTE 4G

Caratteristiche principali del cordless H680L LTE

• Business class portable phone
• 2 SIP accounts
• 2.4 inch color LCD
• Upload the background image of the enterprise
• Support opus voice coding format
• It can be managed by TR-069 protocol
• HD sound quality: HD earpiece, HD speaker, 3.5mm HD headset support
• HD HD Audio: microphone echo elimination, noise reduction technology
• Support 5-way conference
• Configuration mode: Web page, telephone and automatic deployment
• Support high security mechanisms such as SRTP and TLS call encryption
• Rich functions: call hold / wait / transfer, three party conference, address book (1000), call record (1000), multicast, etc

Funzionalità audio

• Hi Fi : HD handle，HD hands free， HD headset
• Wide band codec：G.722，Opus
• Narrow band codec：G.711(A/μ),
• G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, RFC 2833, SIP INFO
• Full duplex handsfree
• Automatic Echo Cancellation(AEC)
• Voice Activity Detection(VAD)
• Comfort Noise Generator(CNG)
• Packet Loss Concealment(PLC)
• Background Noise Evaluation(BNE)
• Automatic Gain Control(AGC)
• Dynamic adaptation RTP jitters buffer up to 300ms

Display

• 2.4”（240×320）TFT color display

Tastiera

• 2 Soft key
• Dial and Hung-up Key
• Speaker, Voice Message and Delete Key
• Transfer, Mute and Cut-Answer Key
• 12 standard digital Key
• 5 Navigation Key
• 2 Volume ± Key

Porte e connessioni

• 3.5mm Headset
• Type-C

Lingue del menù
Simplified Chinese / Traditional Chinese / English / Turkish / Korean/Russian / French / Italian / German / Polish /
Portuguese/Japanese / Spanish / Thai / Hindi / Arabic / Vietnamese

Fall resistance

• 1.3m throw-proof

Standards and Certifications

• FCC，CE，ROSH

Funzioni telefoniche

• Push to talk, Emergency call
• Hold
• Transfer
• Call forwarding
• 5 party conference
• Phone book download(XML，LDAP， 1000 records)
• Call waiting
• Call log(1200 pcs）
• Off hook auto dial
• Automatic response
• Click the telephone function Key to dial
• Flexible dialing rules
• Personalized music ringtones and hold tones
• PTT and Multicast

Energy Saving

• Universal power adapter input:
• 100-240VAC Output: +5VDC，1A (5W) 3000mA Lithium-ion battery，
• Talk time: 10h

Product specification

• Handset phone size: 160mm*55mm*24mm
• Charge base size: 116mm*100mm*106mm
• Net weight of handset: 0.14kg
• Net weight of handset phone and charge
• Base：0.30kg

Colori disponibili

• Black and white available
• Other colors support customization (su ordinazione - consegna in 10-40 gg)

Temperatura e umidità

• Working Temperature: 0~45℃
• Working humidity: 10~90% (non condensing)
• Storage temperature: -20~60℃
• Storage temperature: 10~90% (non condensing)
