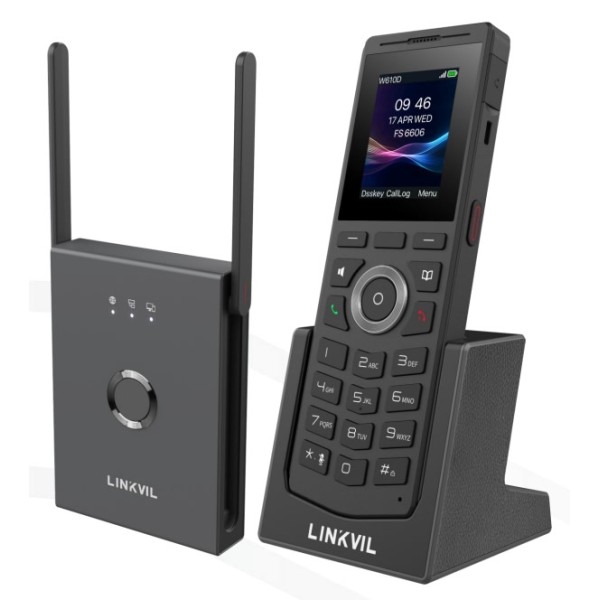

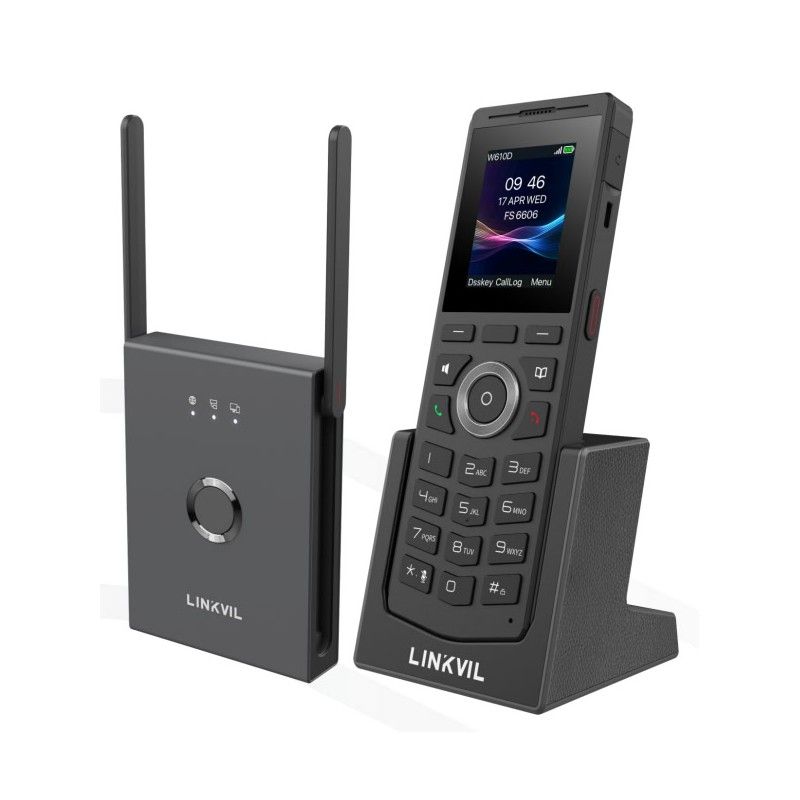

Download (1)Il cordless Fanvil W710D + W610D è perfetto per potersi muovere liberamente in ufficio hotel, a casa, collegandolo su linee o centralino VoIP.

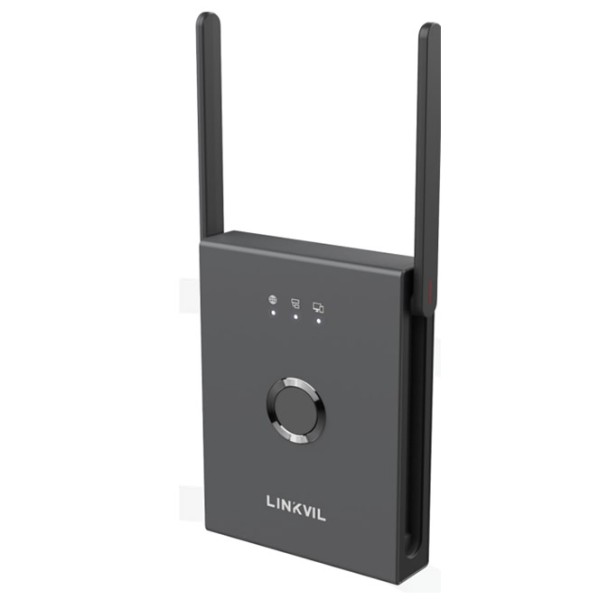

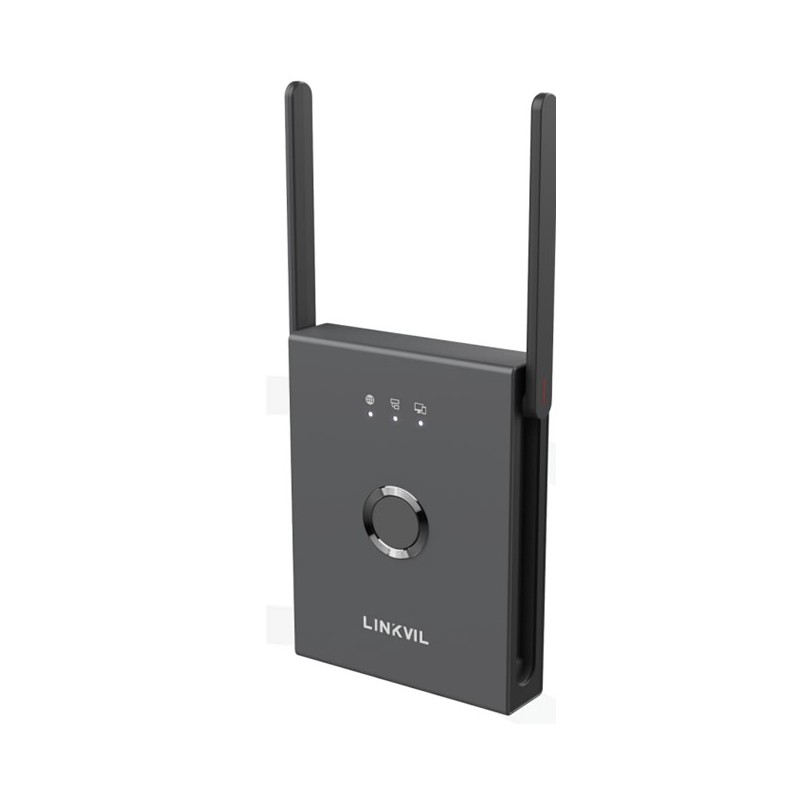

Fanvil W710D è una base DECT che gestisce fino a 10 terminali Fanvil W610D
La cella DECT Fanvil W710D si collega su rete LAN, con alimentazione PoE o con alimentatore locale opzionale.
Si interfaccia con qualunque centralino IP hardware, solo software o virtuale, come ad esempio la gamma di centralini Yeastar serie S (hardware e cloud) oppure la serie P, hardware, software e cloud.
Tra i punti forti evidenziamo:
La cella DECT Fanvil W710D by Linkvil si collega su rete LAN, con alimentazione PoE o con alimentatore locale opzionale.
Si interfaccia con qualunque centralino IP hardware, solo software o virtuale, come ad esempio la gamma di centralini Yeastar serie S (hardware e cloud) oppure la serie P, hardware, software e cloud.
Fanvil Linkvil W710 supporta 10 chiamate contemporanee e fino a 20 SIP accounts.
Supporta fino a 10 terminali W610D
La base Linkvil W710D si alimenta in PoE oppure con alimentatore (incluso)
Ha una copertura wireless da 20 a 300 metri
Caratteristiche tecniche della base DECT Yealink Linkvil W710D
Generic
10 simultaneous calls
• Wireless signal coverage: up to 50 meters indoors and 300 meters outdoors
• 10 terminals
• 20 SIP accounts
• 10 internal extensions
• 10 SIP Servers
• Supports multiple languages: English/Japanese/Korean/French/German/Dutch/Spanish/Italian/Polish/Portuguese/Greek/Turkish/Russian/Chinese/Tra-Chinese
Terminal management
Add/Delete/Import/Export
• Check terminal information
• Configure terminal: Reset, upgrade, DND
• Configuration management: 10 terminal configuration files
• Trouble removal: Capture package, syslog
• Local phone book: 1000 local contact for each terminal
• XML
• LDAP phone book
• 20000 call logs
• Call log statistics: All, Incoming, Outgoing, Missed, Forwards
Network
• DECT protocol
• 10/100 Mbps Ethernet (Bridge connection)
• IP mode: IPv4/IPv6/IPv4&IPv6
• Static IP / DHCP
• 802.1x Network access permission authentication
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
Audio
• Narrowband Codec: G.711a/u, G.729, G.729A, G.729B,G.729AB
• Wideband Codec: G.722, Opus
Protocols
• DECT
• UDP/TCP/TLS
• RTP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• 802.1x
• L2TP
• openVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
Deployment & Maintenance
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog
Specification
• 1 Reset Key
• Shell Material: Plastic Shell
• DC Input: 5V/1A
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Power: DC5V/1A or PoE
• Power Consumption (POE): 1.17W-1.39W
• Power Consumption (Power Adapter): 0.803W - 0.94W
• Installation: Wall-mounted
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C~ +60°C
• Working Humidity: 5% to 95%
• Color: Gunmetal
• Device Dimensions: 140*100*26mm
• Product Weight: 184.5g
• N.W/CTN: 3.1kg
• G.W/CTN: 3.5kg
• Certifications: CE- EMC/CE-LVD/CE-RF/FCC SDOC/FCCID/part68/ERP/DOE/CEC/SRRC/ROHS/WEEE/REACH
Caratteristiche generiche
2.0-inch 240*320 color high-definition LCD display
• 4 SIP lines
• 1 internal extension
• Caller ID
• Handset/Hands-free/Headset Mode
• Support custom 16 DSS keys
• HD Voice
• Incoming vibration alarm
• Belt clip
• Desktop charging base
• Standard type-c interface
• Rechargeable Lithium Battery
• Support Bluetooth 5.0
• Support multi language:English/Japanese/Korean/French/German/Dutch/Spanish/Italian/Polish/Portuguese/Greek/Turkish/Russian/Chinese/Tra-Chinese
Funzioni telefoniche
Network time synchronization
• 1000 Local contacts
• Remote Phonebook (XML/LDAP, 1000 entries)
• Multi-language optional
• 600 Call logs
• Blocked List/Allowed List
• Screen saver
• Personalized ringtone settings
• Screen backlight adjustment
• Memorandum
• SMS service
• Voicemail（MWI）
• Menu encryption settings
• Keypad lock/ backlight adjustment
• Volume adjustment
Audio
• Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
• Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/Background Noise Estimation (BNE)
• Packet Loss Concealment - Dynamic adaptive jitter cache up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP
Fuznioni chiamata
Auto-Answering
• Call out/Answer/Reject
• Call waiting/Switch
• Call forwarding
• Speed Dial
• Intercom
• Anonymous calls
• 6-way Conference
• Restrict outgoing calls
• Speed Dial
• Emergency call
• Caller ID Display
• Inquiry (dialing, incoming and outgoing calls)
• Do-Not-Disturb
• One-Click to speed dial
• 2.0-inch 240*320 color high-definition LCD display
• 4 SIP lines
• 1 internal extension
• Caller ID
• Handset/Hands-free/Headset Mode
• Support custom 16 DSS keys
• HD Voice
• Incoming vibration alarm
• Belt clip
• Desktop charging base
• Standard type-c interface
• Rechargeable Lithium Battery
• Support Bluetooth 5.0
• Support multi language:
English/Japanese/Korean/French/German/Dutch/Spanish/Italian/P
olish/Portuguese/Greek/Turkish/Russian/Chinese/Tra-Chinese
Caratteristiche fisiche
Drop Height: 1.8m
• Shell Material: Plastic Shell
• Charging Base x1
• Belt Clip x1
• Rechargeable Battery x1 1900mAh
• DC Input: 5V/2A
• Charging Port: Type-c
• Headphone Jack: 3.5mm Standard Jack
• Installation: Belt Clip /Desktop
• Operating Temperature: -10℃~ +45℃
• Storage Temperature: -20℃~ +60℃
• Operating humidity:10~95%
• Color: Gunmetal
• Product Size: 156*53*17.7mm
• Product Weight: 146g
Alimentazione
Reminder when charging
• Full reminder
• Low battery prompt
• After abnormal shutdown, the charging will automatically star
• Real-time statistics/display of system power
Linkvil W710 Fanvil cordless DCET IP 3cx kalliope yeastar SIP.
