Fanvil W710D base DECT IP by Linkvil

Fanvil W710D base DECT IP by Linkvil

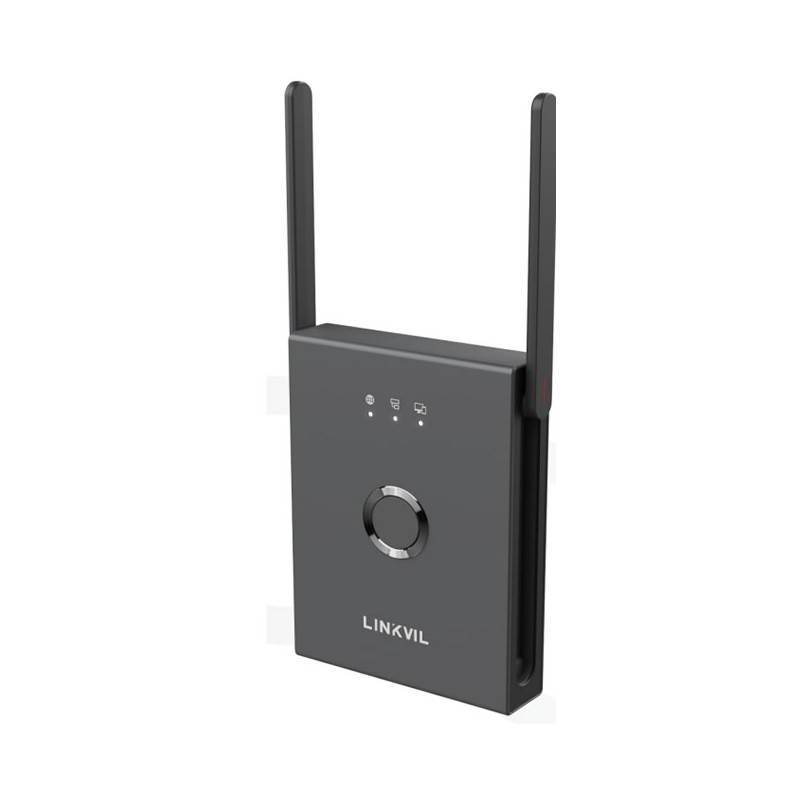

Fanvil W710D è una base DECT che gestisce fino a 10 terminali Fanvil W610D

La cella DECT Fanvil W710D by Linkvil si collega su rete LAN, con alimentazione PoE o con alimentatore locale opzionale.

Si interfaccia con qualunque centralino IP hardware, solo software o virtuale, come ad esempio la gamma di centralini Yeastar serie S (hardware e cloud) oppure la serie P, hardware, software e cloud.

Fanvil Linkvil W710 supporta 10 chiamate contemporanee e fino a 20 SIP accounts.

Supporta fino a 10 terminali W610D

La base Linkvil W710D si alimenta in PoE oppure con alimentatore (incluso)

Ha una copertura wireless da 20 a 300 metri

Caratteristiche tecniche della base DECT Yealink Linkvil W710D

Generic
 10 simultaneous calls
• Wireless signal coverage: up to 50 meters indoors and 300 meters outdoors
• 10 terminals
• 20 SIP accounts
• 10 internal extensions
• 10 SIP Servers
• Supports multiple languages:
English/Japanese/Korean/French/German/Dutch/Spanish/Italian/Polish
/Portuguese/Greek/Turkish/Russian/Chinese/Tra-Chinese

Terminal management
 Add/Delete/Import/Export
• Check terminal information
• Configure terminal: Reset, upgrade, DND
• Configuration management: 10 terminal configuration files
• Trouble removal: Capture package, syslog
• Local phone book: 1000 local contact for each terminal
• XML
• LDAP phone book
• 20000 call logs
• Call log statistics: All, Incoming, Outgoing, Missed, Forwards


Network
• DECT protocol
• 10/100 Mbps Ethernet (Bridge connection)
• IP mode: IPv4/IPv6/IPv4&IPv6
• Static IP / DHCP
• 802.1x Network access permission authentication
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP

Audio
• Narrowband Codec: G.711a/u, G.729, G.729A, G.729B,G.729AB
• Wideband Codec: G.722, Opus


Protocols
• DECT
• UDP/TCP/TLS
• RTP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• 802.1x
• L2TP
• openVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069


Deployment & Maintenance
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog


Specification
• 1 Reset Key
• Shell Material: Plastic Shell
• DC Input: 5V/1A
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Power: DC5V/1A or PoE
• Power Consumption (POE): 1.17W-1.39W
• Power Consumption (Power Adapter): 0.803W - 0.94W
• Installation: Wall-mounted
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C~ +60°C
• Working Humidity: 5% to 95%
• Color: Gunmetal
• Device Dimensions: 140*100*26mm
• Product Weight: 184.5g
• N.W/CTN: 3.1kg
• G.W/CTN: 3.5kg
• Certifications: CE- EMC/CE-LVD/CE-RF/FCC SDOC/FCCID/part68/ERP/DOE/CEC/SRRC/ROHS/WEEE/REACH
