Huawei AC650-128AP Wireless Access Controller eKit

Huawei AC650-128AP Wireless Access Controller

Huawei AC650-128AP è un Wireless Access Controller con 10 porte Gigabit Ethernet

Huawei AC650-128AP WAC, è progettato per reti di access point wifi fino ad un massimo di 128 unità connesse.

Questo WAC Huawei è smeplice da installare e da configurare.

E' dotato di crittografia  avanzata all'autenticazione per garantire la massima sicurezza.

AC650-128AP Huawei, offre elevata  compatibilità con una ampia gamma di access point Huawei e la capacità di adattarsi a vari scenari di implementazione.

Il Wireless Access Controller Huawei AC650 è ideale sia in strutture ricettive che nell reti wireless di imprese e uffici.

Caratteristiche principali del WAC Huawei AC650-128AP

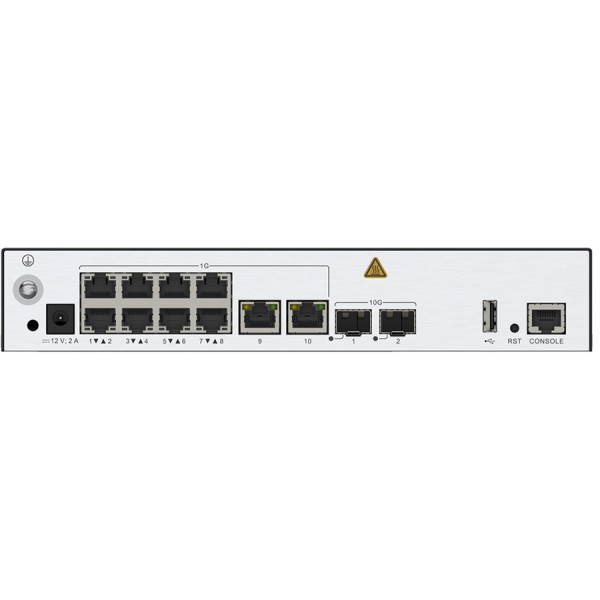

• Porte: 10 x Gigabit in rame + 2 porte GE SFP+
• Forwarding capacity 10 Gbps
• Numero massimo di access point gestibili: 128
• Numero clients: 1024
• 1 porta USB 2.0
• 1 Console port  RJ-45




Ethernet Operating modes of full duplex, half duplex, and auto-negotiation
Rates of an Ethernet interface: 10 Mbps, 100 Mbps, 1000 Mbps, and
auto-negotiation
Flow control on interfaces
Jumbo frames
Link aggregation
Load balancing among links of a trunk
Interface isolation and forwarding restriction
Broadcast storm suppression


AP access control Displays MAC addresses or SNs of APs in the whitelist.
Adds a single AP or multiple APs (by specifying a range of MAC addresses or SNs) to the whitelist.
Automatically discovers and manually confirms APs.
Automatically discovers APs without manually confirming them.


AP region management
Supports three AP region deployment modes: Distributed deployment: APs are deployed independently. An AP is equivalent to a region and does not interfere with other APs. APs work at the maximum power and do not perform radio calibration.
Common deployment: APs are loosely deployed. The transmit power of each radio is less than 50% of the maximum transmit power.
Centralized deployment: APs are densely deployed. The transmit power of each radio is less than 25% of the maximum transmit power.
Specifies the default region to which automatically discovered APs are to be added.

AP profile management
Specifies the default AP profile that is applied to automatically discovered APs.

AP type management
Manages AP attributes including the number of interfaces, AP types, number of radios, radio types, maximum number of virtual access points (VAPs), maximum number of associated users, and radio
gain (for some APs deployed indoors).
Provides built-in default AP types.


Network topology management
Supports LLDP topology detection.


AP working mode management
Supports AP working mode switchover. The AP working mode can be switched to the Fat or cloud mode on the WAC


Radio profile management
Supports the following parameter settings in a radio profile:
Radio working mode and rate Automatic or manual channel and power adjustment mode
Radio calibration interval
Radio type, which can be set to 802.11b, 802.11b/g, 802.11b/g/n, 802.11g, 802.11n, 802.11g/n, 802.11a, 802.11a/n, 802.11ac, or 802.11ax
Allows you to bind a radio to a specified radio profile.Supports MU-MIMO.


Unified static configuration of parameters
Configures radio parameters such as the channel and power of each radio on the WAC and delivers the configurations to APs.


Dynamic management
APs can automatically select working channels and power when they go online.
In an AP region, APs automatically adjust working channels and power in the event of signal interference: Partial calibration: The optimal working channel and power of a specified AP can be adjusted.
Global calibration: The optimal working channels and power of all the APs in a specified region can be adjusted.
The DFA function automatically identifies, switches, or disables redundant radios, reducing 2.4 GHz co-channel interference and increasing system capacity.
When an AP is removed or goes offline, the WAC increases the power of neighboring APs to compensate for the coverage hole.
Automatic selection and calibration of radio parameters in AP regions are supported.


Enhanced service capabilities
Band steering: enables terminals to preferentially access the 5 GHz frequency band, achieving load balancing between the 2.4 GHz and 5 GHz frequency bands.
Smart roaming: enables sticky terminals to roam to APs with better signals.
802.11k and 802.11v smart roaming 802.11r fast roaming (≤ 50 ms
