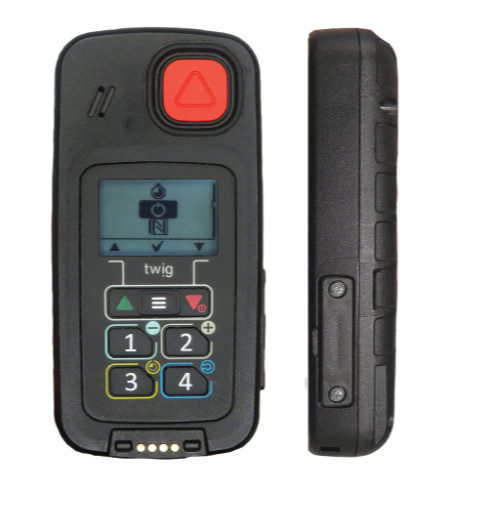

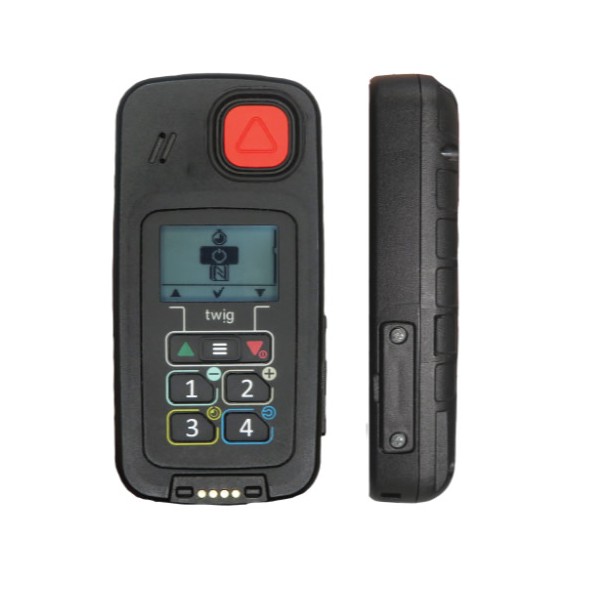

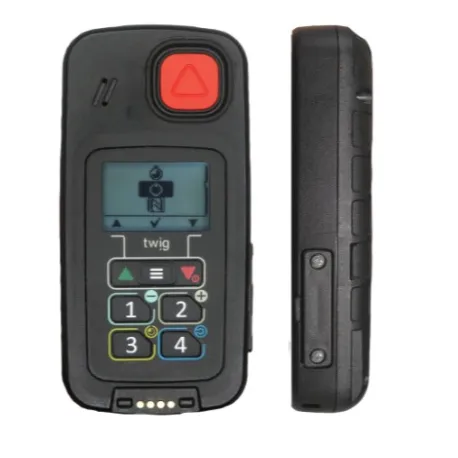

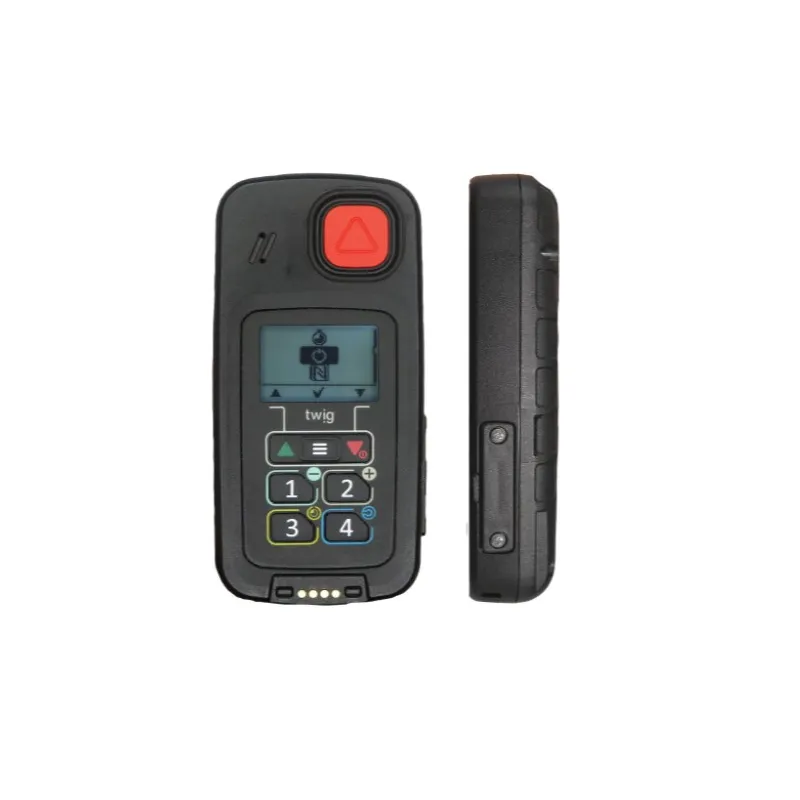

Twig One 2G 3G 4G Man down GPS

Twig One man down GPS 2G/3G/4G

Twin One è un terminale per la sicurezza del lavoratore isolato (lone worker), con funzioni Man Down, GPS, e frequenze 2G,3G,4G.

Il terminale Twig One ha una protezione per liquidi e polveri IP 67.

Include caricabatterie e adattatore per la connessione del dispositivo a porta Usb.

(Clip & Custodia non inclusi)

Caratteristiche principali

• Man Down
• GPS
• 2G/3G/4G

• Compatibility and communication
  • Communicates with all systems using MPTP (Mobile Phone Telematics Protocol) both SMS andGPRS (IP).
  • Tracking and alert messages include information on satellite positioning, TWIG SRD beacons, speed,heading and battery charge.

  Key telematics functions
  • Manual alert through SOS key
  • ManDown alarm* with 4 automatic alert triggers:device orientation, non-movement, impact and free fall
  • Two-way 4G/3G/GSM voice with speaker
  • Device and user status messages
  • Interactive on-screen messages
  • GNSS satellite positioning
  • TWIG Beacon SRD / Wi-Fi / BLE location*
  • Geofence

  Key technical features
  • GSM: 900/1800 MHz
  • WCDMA: Bd.1 (2100MHz)/Bd.3 (1800MHz)/Bd.5 (850MHz)/Bd.8 (900MHz)
  • LTE-FDD: Bd.1 (2100MHz)/Bd.3 (1800MHz)/ Bd.5 (850MHz)/Bd.7 (2600MHz)/Bd.8 (900MHz)/ Bd.20 (800MHz)/Bd.28 (700MHz)
  • LTE-TDD: Bd.38 (2600MHz)/Bd.40 (2300MHz)
  • Built-in GSM, SRD*, GNSS, WiFi*, BLE*, NFC*antennas
  • Speakerphone with 2 microphones
  • Powerful vibrator

  TWIG Point turn-key services
  • TWIG Point Remote Configurator for device settings management over the air
  • TWIG Point Netloc service for public space location (cellular + Wi-Fi) and for on-site location (TWIG SRD+ Wi-Fi + BLE)
  • TWIG Point AGNSS for faster GNSS location (free of charge)
  • TWIG Point Monitor for alarms monitoring and tracking
  • TWIG Point Site for site planning and management

  Software and resources
  • TWIG Configurator PC app
  • TWIG FirmwareLoader PC app
  • TWIG Integrator Kit for ARC integration Standard sales package
  • TWIG One 2G/3G/4G personal alarm device with GNSS positioning functions and integral battery
  • Charger with adapter of choice (EU/UK/AU)

  Optional device features
  • 2G only (TLP50EU)*
  • ManDown alarm*
  • SRD3* for device compatibility with TWIG short range devices (SRD), Wi-Fi and BLE beacons
  • NFC* Reader 13.56 MHz

  Mechanics
  • Dimensions: 102,2 mm x 49,2 mm x 19,7 mm
  • Weight: 89,5 g including battery
  • Water and dust proof (IP67), shock resistant
  • Firm grip with tactile silicone keypad


  Display and keys
  • Alterable SOS key colour
  • LCD display with guiding symbols
  • Preprogrammable function keys and menu key
  • 4 numeric keys for Answer / Assistance call
  • Dedicated keys for Amber alert and Mandown alarm functions


  Provisioning and security
  • Remote or local configuration
  • Authorisation of remote and local access
  • SSL/TLS secured server connection


  Operating time and temperature
  • Rechargeable 1350 mAh Li-ion battery
  • Typical operating times, GNSS satellite positioning/cellular data reporting**
  • 9 days (1 report / hr)
  • 5 days (1 report / 10 min)
  • 33 hours (1 report / min)
  • 10 hours (1 report / 5 sec)
  • Up to 12 days (cellular network standby)
  • Recharging time*** < 4 hrs for 95 %
  • Operating temperature -20°C +50°C

  Accessories
  • Charging and programming stations
  • Alterable SOS key colours, DIY kit
  • Belt clip
  • Carrying case
  • Car charger
  • TWIG Beacon SRD*
  • TWIG Remote Button SRD*
  • TWIG Door Sensor SRD*

  Compatibility and communication
  • Communicates with all systems using MPTP (Mobile Phone Telematics Protocol) both SMS andGPRS (IP).
  • Tracking and alert messages include information on satellite positioning, TWIG SRD beacons, speed,heading and battery charge.
