Gigaset N610 IP PRO cella dect 8 utenti

Gigaset N610 IP PRO cella DECT 8 utenti

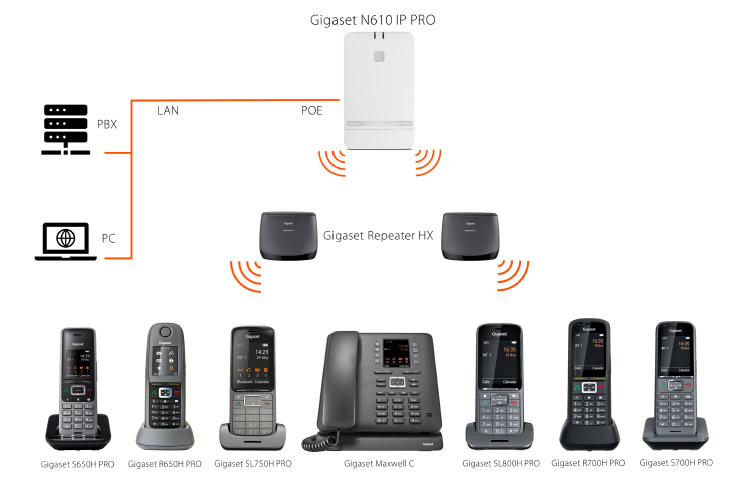

Gigaset N610 IP PRO è una cella DECT (single cell) con supporto di 2 Gigaset repeater e 8 chiamate simultanee e fino a 8 terminali

La stazione DECT Gigaset N610 IP PRO, è utilizzabile su qualunque centralino IP con supporto del protocollo SIP standard, come Yeastar, Openvox, 3CX...

Gigaset N610 IP PRO supporta i terminali Gigaset PRO sia portatili che da scrivania (come i telefoni DECT IP Maxwell C).

Utilizzando il ripetitore di segnale Gigaset Repeater HX, è possibile estendere l'area di copertura della cella.

Possono essere installati fino a 2 ripetitori (posizionandoli in punti in cui il segnale della cella dect N610 IP PRO è ancora di buona qualità).

Software

• Facile configurazione tramite browser
• Semplice configurazione di amministratore tramite file di configurazione

• Auto-provisioning specifico per utente: tramite indirizzo MAC, tramite file di configurazione XML,    Upgrade/downgrade del firmware, Funzioni di backup e ripristino, Accesso a syslog server esterni

Hardware

• Installabile a soffitto o a parete
• Indicatori di stato a LED
• Ethernet RJ45 10/100 Mbps
• Alimentazione PoE IEEE 802.3af classe 1
• Colore: bianco polare
• Fino a 8 account (1 per ogni utente)
• Fino a 8 conversazioni simultanee

Caratteristiche tecniche cella DECT Gigaset N610 IP PRO

• Syslog
• PCAP tracing
• SNMPv3
• CLI - Command Line Interface for specific service cases
• Save and Restore
• Base station remote reset by power procedure
• Firmware update from server (file based, scheduled)

Technical specifications
• DECT EN 300 175-x
• Standards: GAP / pnCAP
• DECT radio coverage up to 50 m (indoor) and 300 m (outdoor)
• Support of 120 DECT channels
• TLS1.0/1.1/1.2/1.3 for HTTPS and SIP, SIPS
• SIP (RFC3261, RFC2396, RFC2976)
• HTTP/Digest Authentication (RFC2617)
• Locating SIP Server (RFC3263)
• Call Transfer (RFC5589, RFC3515, RFC3891, RFC3892)
• MWI (RFC3265, RFC3842)
• SDP (RFC4566, RFC3264, RFC3555)
• RTP (RFC3550, RFC3551, RFC3555, RFC2833), SRTP, RTCP
• IPv4, IPv61, SNTP, DHCP (Option 1, 3, 6, 12, 15, 28, 42, 114, 120),DNS, TCP, UDP, VLAN (IEEE 802.1q)
• DNS SRV
• 8 simultaneous calls (G.711)
• Codecs G.711, G.722, G.729ab
• VAD/CNG (for G.729ab)
• QoS (RFC2474, RFC2475)
• Approvals: CE
• Network AM
• Call transfer: attended, un-attended, blind
• Call waiting
• Call hold/toggle/resume
• Call reject
• CLIR
• Call forwarding: CFU, CFNR, CFB
• Distinctive Ring (Internal/External/group/door/emergency/optional)
• Auto-provisioning
• Net directories via LDAP(S)

Hardware
• Wall- or ceiling mountable
• Antenna diversity
• 2 Status LEDs
• Reset key
• Ethernet RJ45 10/100 Mbps
• Power over Ethernet: PoE IEEE 802.3af class 1
• Two-year warranty

Special features
• Up to 8 SIP accounts: Assign several lines/accounts to a handset.

Define send- and receive accounts for a handset

Internal telephony:
• Assign internal number and name to a handset
• Perform free internal calls
• Internal consultation call
• Transfer external call to an internal party
• MWI signaling configurable
• Failover: DNS SRV, Failover server
• Connect DECT sync/a-sync state with SIP registration(Handset off or out of range / de-register SIP)
• Auto-provisioning
• xHTML Applications
• Local 3-Way Conference

Phonebook and dialing
• Link to an external LDAP(S) phonebooks (up to 10)
• XML directories
• XSI directories (BroadSoft)
• Central directory, hosted by N610, 2000 entries
• Search function and reverse lookup online
• Name indication for incoming calls, outgoing calls,missed call list, redial list
• DTMF (SIP Info / RFC 2833, in-band)
• Country specific call progress tones (provisionable)
• CLIP, CNIP: Name indication for incoming calls, outgoing calls,missed call list, redial list
• Name replacement from local phonebook and online directories (auto lookup)
• Calls lists: up to 50 calls (missed, received, dialled)
• SIP MWI (Message Waiting Indicator) signalling for voice mail

Software
• Easy configuration via web browser
• Administrator friendly configuration via configuration file
• User specific Auto-provisioning:
• via MAC address
• via XML configuration file
• Firmware upgrade / downgrade
• Backup and restore functions
• Log to external syslog servers
