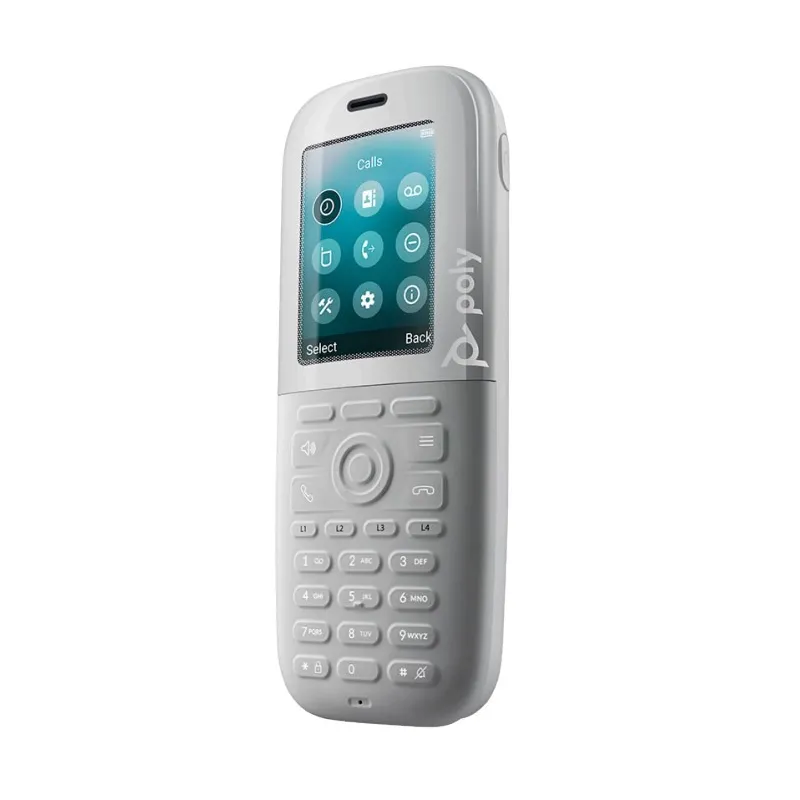

Poly Rove 40 terminale aggiuntivo - Poly R40
Poly Rove 40 (Poly R40) è un terminale cordless aggiuntivo per i sistemi DECT Poly Rove B2, Poly Rove B4.
Il terminale Poly R40 è compatible con le celle Poly B2 e B4.
E' dotato di presa per collegamento di una cuffia attraverso un jack standard da 3,5 mm (esempio le cuffie Jabra Biz2300 o Ezlight), supporta auricolari bluetooth
E' costituito da un case con protezione IP65 contro polveri e liquidi ed ha un trattamento antibatterico.
Il terminale cordless aggiuntivo Poly R40 ha una autonomia in conversazione di 18 ore e fino a 300 ore in standby
Può operare a temperature da -10°C a +55°C ed ha un peso di 171 gr.
Nella confezione Poly R40:
- Terminale poly R40
- Batteria
- Clip cintura
- Guida
- Caricabatteria con alimentatore

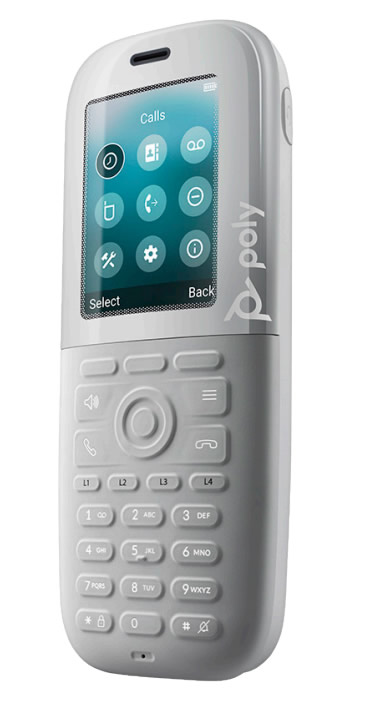

![Poly R40 terminale cordless aggiuntivo Rove 40 Poly R40 terminale cordless aggiuntivo](https://www.ezdirect.it/img/cms/Poly%20Rove%2040.jpg)
Caratteristiche tecniche Poly R40
- 2.4” TFT color LCD with backlight display (240 x 320 pixels 64K)
- Unicode UTF-8-character support
- Multilingual user interface including US English, UK English, Czech, Danish, Dutch, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Serbian, Slovenia, and Turkish
AUDIO FEATURES
- Full-duplex conversations, acoustic echo cancellation and background noise suppression
- Frequency response—150 Hz–7 kHz for handset, optional headset and hands-free speakerphone modes
- Bluetooth
- Presa Jack 3,5 mm
TELEPHONY FEATURES
- Multiple Lines Support for Handsets (20 lines per HS)
- Up to 2 call appearances
- Shared call/bridged line appearance
- Distinctive incoming call treatment/call waiting
- Call timer and call waiting
- Call transfer, hold, pickup, call resume
- Called, calling, connected party information
- Local or network based three-way audio conferencing
- One-touch speed dial, redial
- Missed Call Notifications
- Do Not Disturb (DND) function
- Intercom
- Enhanced Call Park
- Caller ID enable/disable
- Call forward on busy, on no answer, unconditional
- Message Waiting Indicator (MWI)
- 10 Alarm Profiles
- Out of voice band DTMF (RFC 2833)
- Out of voice band DTMF (SIP INFO METHOD)
- Call progress tone generation
- Daylight Savings Time support—worldwide
- Dedicated push to talk (PTT), mute and volume control buttons
- 3 soft keys and 4 programmable line keys
- 20 distinctive ringtones
- OTA (Over the Air) upgrade
- Advanced noise cancellation
Descrizione del sistema DECT Multi Cella Poly B4
Sotto al descrizione del sistema multicella Poly Rove B4 (cella DECT per sistema ampliabile fino a 254 stazioni radio base).
E' disponibile anche la versione single-double cell Poly Rove B2
La soluzione Poly Rove B4 è scalabile e ampliabile fino a 254 celle DECT IP e fino a 1000 terminali wireless.
Poly Robe B4 è una risposta ideale per cliniche, ospedali, industria e grandi aziende in cui sono richiesti qualità, affidabilità, scalabilità e terminali con sistema antibatterico (Rove 40), con protezione da polveri e liquidi fino a IP65
Un sistema DECT multicella (o con repater) permette di mantenere attiva la conversazione anche quando si è in movimento e si passa da un'area di copertura d un'altra (ci si sposta in ambienti coperti da diverse celle/repeaters).
Sono disponibili terminali aggiuntivi con trattamento antimicrobico IP 65 quindi resistenti a polveri, liquidi e disinfettabili.
Supporta ripetitore Rove "8 per ampliare copertura delle singole celleB4
Poly Rove B4 Dettagli tecnici:
Telephony Features
- Up to 30 Handsets per Base Station
- Up to 8 Simultaneous Calls per Base Station
- Up to 1000 Handsets per System
- Up to 1000 SIP Registrations per System
- Up to 2000 Simultaneous Calls per System
- Shared call/bridged line appearance
- Distinctive incoming call treatment/ call waiting
- Call timer and call waiting
- Call transfer, hold, divert (forward), pickup, call resume
- Called, calling, connected party information
- Local or network based three-way audio conferencing
- Missed Call Notifications
- Do Not Disturb (DND) function
- Intercom
- Enhanced Call Park
- Caller ID enable/disable, caller ID number, caller ID name
- Call forward on busy, on no answer, unconditional
- Message Waiting Indicator (MWI)
- LED Indicator
- Locate Handset and Handset Registration Button
- Monitor signal strength of handsets
- Monitor battery life of handsets
- Out of voice band DTMF (RFC 2833)
- Out of voice band DTMF (SIP INFO METHOD)
- Call progress tone generation
- Daylight Savings Time support—
- XSi directory
- XML/LDAP/remote phonebook
- DECT™ redundancy
DECT™ Frequency
- 1920–1930 MHz (North America SKU)
- 1880–1900 MHz (EU/ANZ/UK SKU)
Range
- Indoor: up to 165 ft (50 m)
- Outdoor: up to 980 ft (300 m)
- Range increases by up to 50 m or up to 300 m depending on environment as a base station or repeater is added
Audio Features
- Narrowband Codecs: G.711 A-law and μ-law, G.726, G.729A, G.729AB
- Wideband Codec: G.722, Opus
- Voice activity detection
- Comfort noise generation
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC2833 and SIP INFO)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Advance Noise Cancelation
- Packet loss concealment
- G.165, 168 echo cancellation
- Silence suppression
VOIP Features
- Ten (10) service provider configuration profile assignments (ITSP Profile A – J)
- Up to 1000 (1000) service subscription profile assignments (SP 1 – 1000)
- SIPv2 (RFC 3261, 3262, 3263,3264)
- SIP over UDP
- SIP over TCP
- SIP over TLS
- SIP proxy redundancy—Local or DNS based SVR, primary and secondary fallback list
- Maximum number of sessions—independent per service
- Codec profile per SIP SP
- Dynamic audio payload
- SUBSCRIBE/NOTIFY Framework (RFC 3265)
- NOTIFY dialog, line status
- SUBSCRIBE message summary
- VoIP NAT interworking
- DATA Header support
- Remote-Party-ID (RPID)
- P-Asserted-Identity (PAID)
Network
- 10/100 Base Ethernet Port
- Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
- Conforms to IEEE802.3-2002 (Clause28) for link partner auto-negotiation
- SIP protocol support
- SDP
- Manual or dynamic host configuration protocol DHCP network setup
- Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
- SNTP (RFC 2030)
- Provisioning and call server redundancy supported
- QoS support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
- CDP/LLDP-MED for VLAN discovery
- Network address translation—support for static configuration and “Keep-Alive” SIP signaling
- RTCP and RTP support
- Event logging
- Syslog
- MAC Address (IEEE 802.3)
- UDP (RFC 768) in SSL/TLS
- TCP (RFC 793) in SSL/TLS
- IPv4 (RFC 791) – static IP and DHCP support
- ICMP (RFC 792)
- ARP—address resolution protocol
- Domain Name System (DNS) A records (RFC 1706) and SRV records (RFC 2782)
- DNS NAPTR
- RTP/RTCP (RFC 1889)
- DHCP Client (RFC 2131)
- DiffServ (RFC 2475)—independently configured service, SIP and media
- ToS (RFC 791, 1349)—independently configured service, SIP and media
- VLAN tagging (802.1p)—independently configured service, SIP and media
Management and Configuration
- Provisioning via PDMS-SP
- Troubleshoot interface: Syslog, PCAP and Web
- Secure Remote Provisioning: HTTPS, Encrypted XML via TFTP or HTTP
- Customization: Poly Zero Touch
- System settings back-up/restore: Save and restore configuration via XML file to/from a local folder
Security
- 802.1X authentication and EAPOL
- Media encryption via SRTP
- Transport layer security
- Encrypted configuration files
- Digest authentication
- Username and Password web interface access via HTTP or HTTPS
HTTPS secure provisioning
- RTP Statistics
- Audio Codec Type (Tx/Rx)
- RTP Packetization (Tx/Rx)
- RTP Packet Count (Tx/Rx)
- RTP Byte Count (Tx/Rx)
- Packets Out-Of-Order
- Packets Interpolated
- Packets Dropped
- Packets Lost
- Jitter Buffer Length-ms
- Received Interarrival Jitter-ms
- Jitter Buffer Underruns
- Jitter Buffer Overruns
- MOS Score
- Base Station Power
- External Universal AC adapter (5V 2A DC)
- Power Over Ethernet (POE)
Includes - Confezione
- Base Station
- Stand
- Ethernet Cable
- Wall Mounting Kit
- Quick Start Guide
- Safety Sheet
