Poly Rove 30 terminale DECT R30

Poly Rove 30 terminale DECT R30

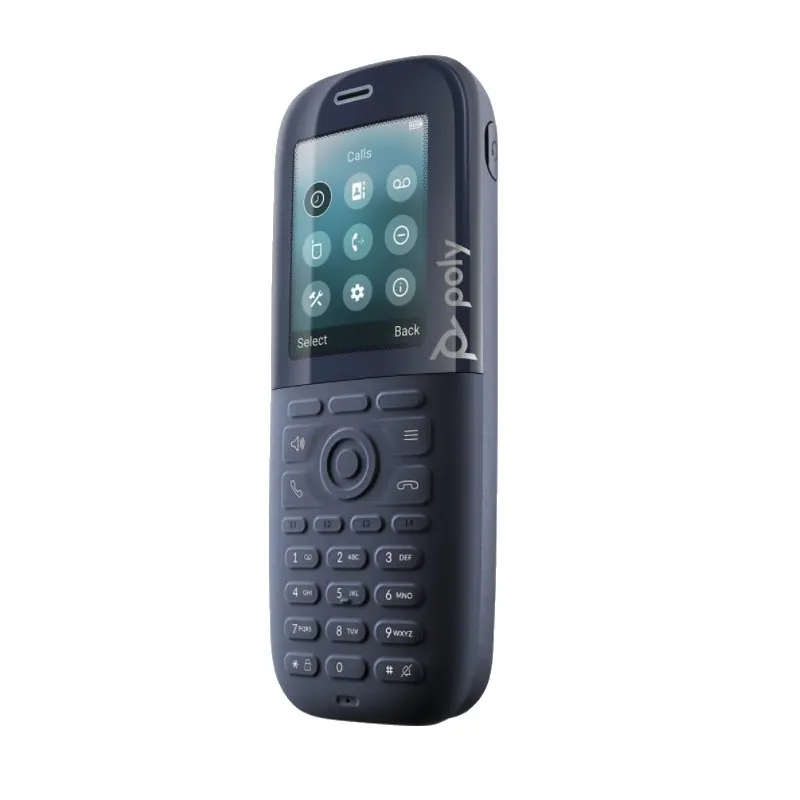

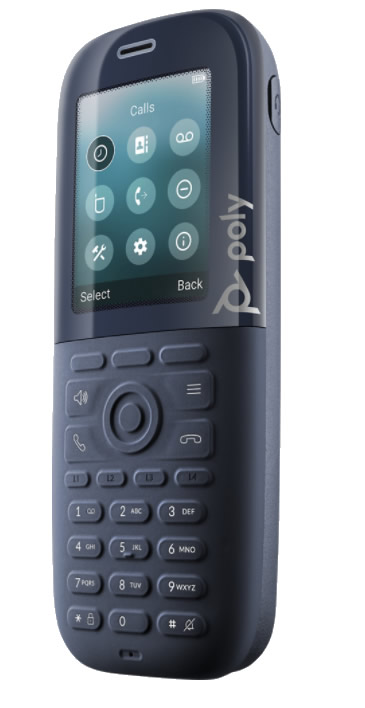

Poly Rove 30 (Poly R30) è un terminale aggiuntivo per i sistemi DECT Poly Rove B2, Poly Rove B4.

Il terminale Poly R30 (Poly Rove 30) è compatible con le celle Poly B2 e B4.

E' dotato di presa per collegamento di una cuffia attraverso un jack standard da 3,5 mm (esempio le cuffie Jabra Biz2300 o Ezlight)

Il terminale Poly Rove 30 ha una autonomia in conversazione di 18 ore e fino a 300 ore in standby

Nella confezione Poly R30:

• Terminale poly R30
• Batteria
• Clip cintura
• Guida
• Caricabatteria con alimentatore

Caratteristiche tecniche Poly R30

• 2.4” TFT color LCD with backlight display (240 x 320 pixels 64K)
• Unicode UTF-8-character support
• Multilingual user interface including US English, UK English, Czech, Danish, Dutch, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Serbian, Slovenia, and Turkish
• AUDIO FEATURES
• Full-duplex conversations, acoustic echo cancellation and background noise suppression
• Frequency response—150 Hz–7 kHz for handset, optional headset and hands-free speakerphone modes

TELEPHONY FEATURES

• Multiple Lines Support for Handsets (20 lines per HS)
• Up to 2 call appearances
• Shared call/bridged line appearance
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, pickup, call resume
• Called, calling, connected party information
• Local or network based three-way audio conferencing
• One-touch speed dial, redial
• Missed Call Notifications
• Do Not Disturb (DND) function
• Intercom
• Enhanced Call Park
• Caller ID enable/disable
• Call forward on busy, on no answer, unconditional
• Message Waiting Indicator (MWI)
• 10 Alarm Profiles
• Out of voice band DTMF (RFC 2833)
• Out of voice band DTMF (SIP INFO METHOD)
• Call progress tone generation
• Daylight Savings Time support—worldwide
• Dedicated push to talk (PTT), mute and volume control buttons
• 3 soft keys and 4 programmable line keys
• 20 distinctive ringtones
• OTA (Over the Air) upgrade
• Advanced noise cancellation

Descrizione del sistema DECT Multi Cella Poly B4

Sotto al descrizione del sistema multicella Poly Rove B4 (cella DECT per sistema ampliabile fino a 254 stazioni radio base).

E' disponibile anche la versione single-double cell Poly Rove B2

La soluzione Poly Rove B4 è scalabile e ampliabile fino a 254 celle DECT IP e fino a 1000 terminali wireless.

Poly Robe B4 è una risposta ideale per cliniche, ospedali, industria e grandi aziende in cui sono richiesti qualità, affidabilità, scalabilità e terminali con sistema antibatterico (Rove 40), con protezione da polveri e liquidi fino a IP65

Un sistema DECT multicella (o con repater) permette di mantenere attiva la conversazione anche quando si è in movimento e si passa da un'area di copertura d un'altra (ci si sposta in ambienti coperti da diverse celle/repeaters).

Sono disponibili terminali aggiuntivi con trattamento antimicrobico IP 65 quindi resistenti a polveri, liquidi e disinfettabili.

Supporta ripetitore Rove "8 per ampliare copertura delle singole celleB4

Poly Rove B4 Dettagli tecnici:

Telephony Features

• Up to 30 Handsets per Base Station
• Up to 8 Simultaneous Calls per Base Station
• Up to 1000 Handsets per System
• Up to 1000 SIP Registrations per System
• Up to 2000 Simultaneous Calls per System
• Shared call/bridged line appearance
• Distinctive incoming call treatment/ call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup, call resume
• Called, calling, connected party information
• Local or network based three-way audio conferencing
• Missed Call Notifications
• Do Not Disturb (DND) function
• Intercom
• Enhanced Call Park
• Caller ID enable/disable, caller ID number, caller ID name
• Call forward on busy, on no answer, unconditional
• Message Waiting Indicator (MWI)
• LED Indicator
• Locate Handset and Handset Registration Button
• Monitor signal strength of handsets
• Monitor battery life of handsets
• Out of voice band DTMF (RFC 2833)
• Out of voice band DTMF (SIP INFO METHOD)
• Call progress tone generation
• Daylight Savings Time support—
• XSi directory
• XML/LDAP/remote phonebook
• DECT™ redundancy

DECT™ Frequency

• 1920–1930 MHz (North America SKU)
• 1880–1900 MHz (EU/ANZ/UK SKU)

Range

• Indoor: up to 165 ft (50 m)
• Outdoor: up to 980 ft (300 m)
• Range increases by up to 50 m or up to 300 m depending on environment as a base station or repeater is added

Audio Features

• Narrowband Codecs: G.711 A-law and μ-law, G.726, G.729A, G.729AB
• Wideband Codec: G.722, Opus
• Voice activity detection
• Comfort noise generation
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC2833 and SIP INFO)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Advance Noise Cancelation
• Packet loss concealment
• G.165, 168 echo cancellation
• Silence suppression

VOIP Features

• Ten (10) service provider configuration profile assignments (ITSP Profile A – J)
• Up to 1000 (1000) service subscription profile assignments (SP 1 – 1000)
• SIPv2 (RFC 3261, 3262, 3263,3264)
• SIP over UDP
• SIP over TCP
• SIP over TLS
• SIP proxy redundancy—Local or DNS based SVR, primary and secondary fallback list
• Maximum number of sessions—independent per service
• Codec profile per SIP SP
• Dynamic audio payload
• SUBSCRIBE/NOTIFY Framework (RFC 3265)
• NOTIFY dialog, line status
• SUBSCRIBE message summary
• VoIP NAT interworking
• DATA Header support
• Remote-Party-ID (RPID)
• P-Asserted-Identity (PAID)

Network

• 10/100 Base Ethernet Port
• Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
• Conforms to IEEE802.3-2002 (Clause28) for link partner auto-negotiation
• SIP protocol support
• SDP
• Manual or dynamic host configuration protocol DHCP network setup
• Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• SNTP (RFC 2030)
• Provisioning and call server redundancy supported
• QoS support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• CDP/LLDP-MED for VLAN discovery
• Network address translation—support for static configuration and “Keep-Alive” SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• MAC Address (IEEE 802.3)
• UDP (RFC 768) in SSL/TLS
• TCP (RFC 793) in SSL/TLS
• IPv4 (RFC 791) – static IP and DHCP support
• ICMP (RFC 792)
• ARP—address resolution protocol
• Domain Name System (DNS) A records (RFC 1706) and SRV records (RFC 2782)
• DNS NAPTR
• RTP/RTCP (RFC 1889)
• DHCP Client (RFC 2131)
• DiffServ (RFC 2475)—independently configured service, SIP and media
• ToS (RFC 791, 1349)—independently configured service, SIP and media
• VLAN tagging (802.1p)—independently configured service, SIP and media

Management and Configuration

• Provisioning via PDMS-SP
• Troubleshoot interface: Syslog, PCAP and Web
• Secure Remote Provisioning: HTTPS, Encrypted XML via TFTP or HTTP
• Customization: Poly Zero Touch
• System settings back-up/restore: Save and restore configuration via XML file to/from a local folder

Security

• 802.1X authentication and EAPOL
• Media encryption via SRTP
• Transport layer security
• Encrypted configuration files
• Digest authentication
• Username and Password web interface access via HTTP or HTTPS

HTTPS secure provisioning

• RTP Statistics
• Audio Codec Type (Tx/Rx)
• RTP Packetization (Tx/Rx)
• RTP Packet Count (Tx/Rx)
• RTP Byte Count (Tx/Rx)
• Packets Out-Of-Order
• Packets Interpolated
• Packets Dropped
• Packets Lost
• Jitter Buffer Length-ms
• Received Interarrival Jitter-ms
• Jitter Buffer Underruns
• Jitter Buffer Overruns
• MOS Score
• Base Station Power
• External Universal AC adapter (5V 2A DC)
• Power Over Ethernet (POE)

Includes - Confezione

• Base Station
• Stand
• Ethernet Cable
• Wall Mounting Kit
• Quick Start Guide
• Safety Sheet
