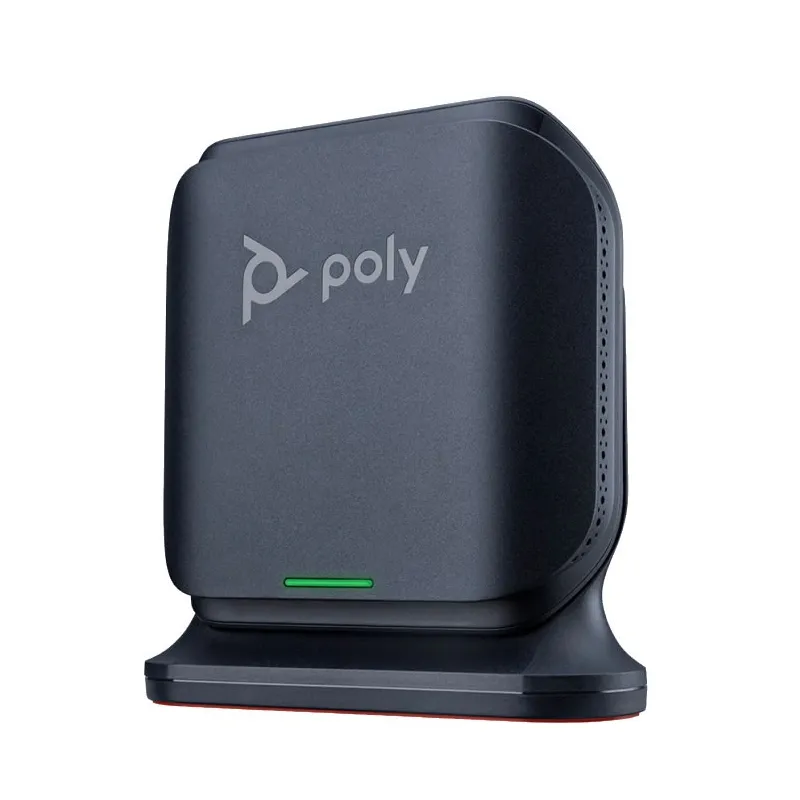

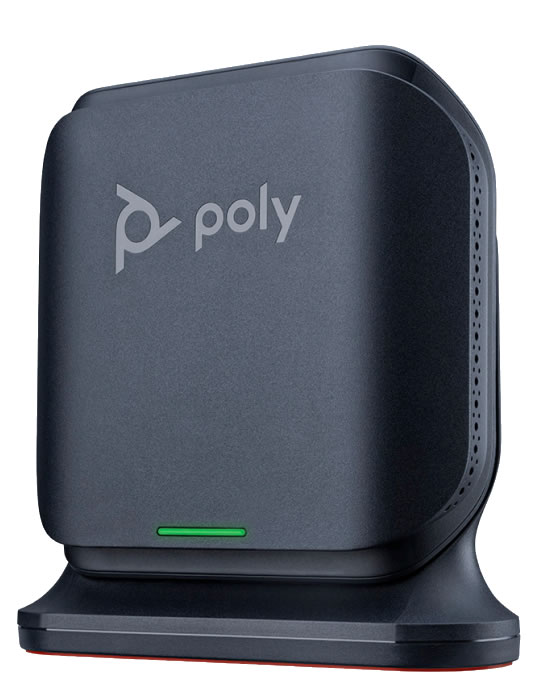

Poly Rove B2 Dect Base Station

Poly B2 Base Station DECT (Single - Dual Cell)

Poly B2 cella DECT è un sistema DECT espandibile fino a 2 celle per la gestione di 20 terminali e fino a  10 conversazioni simultanee

Il sistema DECT Poly Rove B2 è ideale in piccole aziende, uffici, studi professionali, in cui è necessario avere un centralino cordless affidabile, stabile, che supporti anche terminali DECT bluetooth e disinfettabili, specie in ambienti come cliniche, studi medici etc.

Poly Rove B2 supporta ripetitori Poly Rove R8 Repeater per estendere la copertura wireless della cella.

Un sistema DECT multicella (o con repater) permette di mantenere attiva la conversazione anche quando si è in movimento e si passa da un'area di copertura d un'altra (ci si sposta in ambienti coperti da diverse celle/repeaters).

Sono disponibili terminali aggiuntivi con trattamento antimicrobico IP 65 quindi resistenti a polveri, liquidi e disinfettabili.

Caratteristiche tecniche Poly Rove B2

Alimentazione cella DECT

• External Universal AC adapter (5V 2A DC)
• Power Over Ethernet (POE)

Confezione Poly Rove B2

• Base Station
• Stand
• Ethernet Cable
• Power Adapter
• Wall Mounting Kit
• Quick Start Card
• Safety Sheet2

Diemensioni cella dect Poly Rove

• Base Station box dimensions: 239 x 141 x 44 (mm)

DECT™ FREQUENCY

• 1920–1930 MHz (North America SKU)
• 1880–1900 MHz (EU/ANZ/UK SKU)

RANGE

• Indoor: up to 165 ft (50 m)
• Outdoor: up to 980 ft (300 m)
• Range increases by up to 50 m or up to 300 m depending on environment as a base station or repeater is added

AUDIO FEATURES

• Narrowband Codecs: G.711 A-law and μ-law, G.726, G.729A, G.729AB
• Wideband Codec: G.722, Opus
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC2833 and SIP INFO)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Advance Noise Cancelation
• Packet loss concealment
• G.165, 168 echo cancellation
• Silence suppression

TELEPHONY FEATURES

• Up to 20 Handsets (Single/Dual Cell)
• Up to 10 Simultaneous Calls (Single Cell)
• Up to 20 Simultaneous Calls (Dual Cell)
• Up to 20 SIP Registrations
• Shared call/bridged line appearance
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, pickup, call resume
• Called, calling, connected party information
• Local or network based three-way audio conferencing
• Missed Call Notifications
• Do Not Disturb (DND) function
• Intercom
• Enhanced Call Park
• Caller ID enable/disable
• Call forward on busy, on no answer, unconditional
• Message Waiting Indicator (MWI)
• LED Indicator
• Locate Handset and Handset Registration Button
• Monitor signal strength of handsets
• Monitor battery life of handsets
• Out of voice band DTMF (RFC 2833)
• Out of voice band DTMF (SIP INFO METHOD)
• Call progress tone generation
• Daylight Savings Time support—worldwide
• XSi directory
• XML/LDAP/remote phonebook
• DECT™ redundancy

VOIP FEATURES

• Ten (10) service provider configuration profile assignments (ITSP Profile A – J)
• Up to Twenty (20) service subscription profile assignments (SP 1 – 20)
• SIPv2 (RFC 3261, 3262, 3263,3264)
• SIP over UDP
• SIP over TCP
• SIP over TLS
• SIP proxy redundancy—Local or DNS based SVR, primary and secondary fallback list
• Maximum number of sessions—independent per service
• Codec profile per SIP SP
• Dynamic audio payload
• SUBSCRIBE/NOTIFY Framework (RFC 3265)
• NOTIFY dialog, line status
• SUBSCRIBE message summary
• VoIP NAT interworking
• DATA Header support
• Remote-Party-ID (RPID)
• P-Asserted-Identity (PAID) NETWORK

Rete

• 10/100 Base Ethernet Port
• Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
• Conforms to IEEE802.3-2002 (Clause28) for link partner auto-negotiation
• SIP protocol support
• SDP
• Manual or dynamic host configuration protocol DHCP network setup
• Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• SNTP (RFC 2030)
• Provisioning and call server redundancy supported1
• QoS support—IEEE 802.1p/Q tagging
• (VLAN), Layer 3 TOS, and DHCP
• CDP/LLDP-MED for VLAN discovery
• Network address translation—support for static configuration and “Keep-Alive” SIP signaling
• RTCP and RTP support
• Event logging

MANAGEMENT AND CONFIGURATION

• Provisioning via PDMS-SP
• Troubleshoot interface: Syslog, PCAP and Web
• Secure Remote Provisioning: HTTPS, Encrypted XML via TFTP or HTTP
• Customization: Poly Zero Touch
• System settings back-up/restore: Save and restore configuration via XML file to/from a local folder

| Sito del costruttore
